z::core::circularBuffer< TYPE, LEN > Class Template Reference

A circular buffer of fixed size. Appending can be done indefinitely, as the index will just loop back around to the beginning. More...

#include <circularBuffer.hpp>

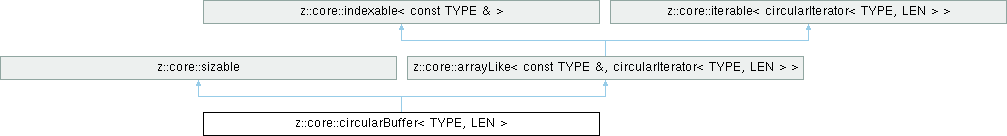

Inheritance diagram for z::core::circularBuffer< TYPE, LEN >:

Public Member Functions
	circularBuffer () noexcept
	Default constructor.
template<typename... ARGS>
	circularBuffer (const ARGS &...args) noexcept
	Initialize the buffer with the contents of an array.
	circularBuffer (TYPE default_value) noexcept
	Initialize all elements with a single value.
size_t	size () const noexcept override
	Get the size of the object in memory.
int	length () const noexcept override
	Get the length of the array.
const TYPE &	at (const int index) const noexcept override
	Get an element from the buffer.
TYPE &	at (const int index) noexcept
	Get a modifiable element from the buffer.
void	append (const TYPE value) noexcept
	Add a value to the buffer, and increment the current index.
int	index () const noexcept
	Get the index of the current top of the buffer.
TYPE &	current () noexcept
	Get a reference to the topmost item in the buffer.
int	count () const noexcept
	Get the total number of items in the buffer.
void	prev () noexcept
	Move current "top" to the previous spot in the buffer.
void	next () noexcept
	Move current "top" to the next spot in the buffer.
circularIterator< TYPE, LEN >	begin () const noexcept override
	Get an iterator for the first element in this object.
circularIterator< TYPE, LEN >	end () const noexcept override
	Get an iterator after the last element of this object.
template<typename... ARGS>
void	populate (const TYPE &first, const ARGS &...args) noexcept
	Append an arbitrary number of elements to the buffer.
void	populate (const TYPE &arg) noexcept
	Append an element to the buffer.
TYPE	minimum () const noexcept
	Get the minimum value contained in this buffer.
TYPE	maximum () const noexcept
	Get the maximum value contained in this buffer.
double	average () const noexcept
	Get the average (mean) value contained in this buffer.
Public Member Functions inherited from z::core::indexable< const TYPE & >
virtual const TYPE &	operator[] (int index) const
	Function to get the object at the given index.

Detailed Description

template<typename TYPE, unsigned int LEN>
class z::core::circularBuffer< TYPE, LEN >

A circular buffer of fixed size. Appending can be done indefinitely, as the index will just loop back around to the beginning.

Constructor & Destructor Documentation

circularBuffer() [1/2]

template<typename TYPE, unsigned int LEN>

template<typename... ARGS>

z::core::circularBuffer< TYPE, LEN >::circularBuffer ( const ARGS &... args )

inlinenoexcept

Initialize the buffer with the contents of an array.

This allows for brace-enclosed initialization e.g. circularBuffer<int, 3> buffer = {1, 2, 3};

Parameters

args	A list of elements to append to the buffer.

circularBuffer() [2/2]

template<typename TYPE, unsigned int LEN>

z::core::circularBuffer< TYPE, LEN >::circularBuffer ( TYPE default_value )

inlinenoexcept

Initialize all elements with a single value.

Parameters

default_value

The value to initialize elements with.

Member Function Documentation

append()

template<typename TYPE, unsigned int LEN>

void z::core::circularBuffer< TYPE, LEN >::append ( const TYPE value )

inlinenoexcept

Add a value to the buffer, and increment the current index.

Parameters

value

The value to append.

at() [1/2]

template<typename TYPE, unsigned int LEN>

const TYPE & z::core::circularBuffer< TYPE, LEN >::at ( const int index ) const

inlineoverridevirtualnoexcept

Get an element from the buffer.

This method is used when we're not modifying the resultant value.

Parameters

index

The index of the value we want.

Returns

The value at that index.

Implements z::core::indexable< const TYPE & >.

at() [2/2]

template<typename TYPE, unsigned int LEN>

TYPE & z::core::circularBuffer< TYPE, LEN >::at ( const int index )

inlinenoexcept

Get a modifiable element from the buffer.

This method is used when we ARE modifying the resultant value. The compiler knows the difference and will use this function only when needed.

Parameters

index

The index of the value we want.

Returns

The value at that index.

average()

template<typename TYPE, unsigned int LEN>

double z::core::circularBuffer< TYPE, LEN >::average ( ) const

inlinenoexcept

Get the average (mean) value contained in this buffer.

Note

This method is only available for arithmetic types.

Returns

The average of the values in the buffer.

begin()

template<typename TYPE, unsigned int LEN>

circularIterator< TYPE, LEN > z::core::circularBuffer< TYPE, LEN >::begin ( ) const

inlineoverridevirtualnoexcept

Get an iterator for the first element in this object.

This member function should not be used directly. It is meant for C++11's range-based for loop syntax.

Returns

An iterator on the first element.

Implements z::core::iterable< circularIterator< TYPE, LEN > >.

count()

template<typename TYPE, unsigned int LEN>

int z::core::circularBuffer< TYPE, LEN >::count ( ) const

inlinenoexcept

Get the total number of items in the buffer.

This will return at most the maximum buffer size.

Returns

The number of items in the buffer.

current()

template<typename TYPE, unsigned int LEN>

TYPE & z::core::circularBuffer< TYPE, LEN >::current ( )

inlinenoexcept

Get a reference to the topmost item in the buffer.

Returns

The topmost item.

end()

template<typename TYPE, unsigned int LEN>

circularIterator< TYPE, LEN > z::core::circularBuffer< TYPE, LEN >::end ( ) const

inlineoverridevirtualnoexcept

Get an iterator after the last element of this object.

This member function should not be used directly. It is meant for C++11's range-based for loop syntax.

Returns

An iterator after the last element.

Implements z::core::iterable< circularIterator< TYPE, LEN > >.

index()

template<typename TYPE, unsigned int LEN>

int z::core::circularBuffer< TYPE, LEN >::index ( ) const

inlinenoexcept

Get the index of the current top of the buffer.

This index will always be a value from 0 to the length of the buffer.

Returns

The current index.

length()

template<typename TYPE, unsigned int LEN>

int z::core::circularBuffer< TYPE, LEN >::length ( ) const

inlineoverridevirtualnoexcept

Get the length of the array.

Returns

The number of objects in the array.

Implements z::core::arrayLike< const TYPE &, circularIterator< TYPE, LEN > >.

maximum()

template<typename TYPE, unsigned int LEN>

TYPE z::core::circularBuffer< TYPE, LEN >::maximum ( ) const

inlinenoexcept

Get the maximum value contained in this buffer.

Note

This method is only available for arithmetic types.

Returns

The maximum value in the buffer.

minimum()

template<typename TYPE, unsigned int LEN>

TYPE z::core::circularBuffer< TYPE, LEN >::minimum ( ) const

inlinenoexcept

Get the minimum value contained in this buffer.

Note

This method is only available for arithmetic types.

Returns

The minimum value in the buffer.

populate() [1/2]

template<typename TYPE, unsigned int LEN>

void z::core::circularBuffer< TYPE, LEN >::populate ( const TYPE & arg )

inlinenoexcept

Append an element to the buffer.

This is the tail end of calling populate() with 2 or more arguments.

Parameters

arg	The element to append.

populate() [2/2]

template<typename TYPE, unsigned int LEN>

template<typename... ARGS>

void z::core::circularBuffer< TYPE, LEN >::populate ( const TYPE & first, const ARGS &... args )

inlinenoexcept

Append an arbitrary number of elements to the buffer.

Parameters

first	The first element to append.
args	All other elements to append.

size()

template<typename TYPE, unsigned int LEN>

size_t z::core::circularBuffer< TYPE, LEN >::size ( ) const

inlineoverridevirtualnoexcept

Get the size of the object in memory.

Returns

The number of bytes in memory this object currently consumes.

Implements z::core::sizable.

---

The documentation for this class was generated from the following file:

• z/core/circularBuffer.hpp
